0317 05-1 | Lumberg

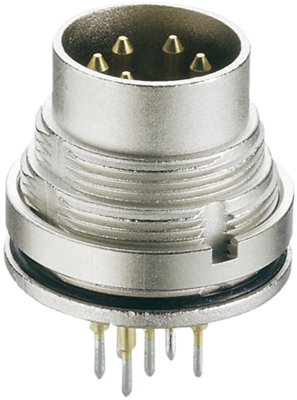

Name: Panel plug, 5 pole, pin connection, screw locking, straight, 0317 05-1
Brand: Lumberg
SKU: 41P1120
Price: 5.74 EUR
Availability: OutOfStock

Panel plug, 5 pole, pin connection, screw locking, straight, 0317 05-1

Order No.: 41P1120

EAN: 4099889723144

MPN:

0317 05-1

Series: 0317

Image may differ

Key Specification:

Ausführung Einbaustecker

Polzahl 5-polig

Orientierung gerade

Kontaktanschluss Stiftanschluss

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.7358 € *

Available: 0 pcs.

Leadtime: 15 Weeks **

Total Price:

5.74 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Chassis plug, 0317 05-1, LUMBERG

Chassis plug IP68 with threaded joint M16, for printed circuit boards and back side mounting.

Technical specifications

	Ausführung	Einbaustecker
	Gehäusematerial	Metall
	Kontaktanschluss	Stiftanschluss
	Kontaktoberfläche	vergoldet/versilbert
	Montage	Rückseitenmontage
	Orientierung	gerade
	Polzahl	5-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Technisches Datenblatt - DE/EN Technisches Datenblatt

Produktänderung - DE/EN Produktänderung

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	PL
Zolltarifnummer	85366990
Originalverpackung	Karton mit 50 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
