0322 03 | Lumberg
Jack, 3 pole, solder cup, screw locking, straight, 0322 03
Unit Price (€ / pc.)
10.4006 € *
Available: 2 pcs.
Next delivery: 100 pcs. on 2025-01-15
Leadtime: 9 Weeks **
Total Price:
10.40 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4006 €
10 pcs.
9.1630 €
50 pcs.
8.5323 €
200 pcs.
8.0444 €
400 pcs.
7.7112 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket, 0322 03, LUMBERG

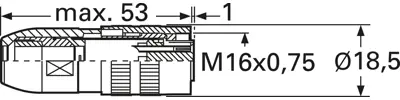

Socket IP68, with threaded joint M16 and solder terminals, 360° shielded.
Technical specifications
| Version | DIN jack | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Cable diameter | 4 to 8 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
