KGV 40 | Lumberg
Panel socket, 4 pole, solder cup, screw locking, straight, KGV 40
Unit Price (€ / pc.)
4.1888 € *
Available: 86 pcs.
Leadtime: 9 Weeks **
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
3.6890 €
100 pcs.
3.2487 €
200 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale

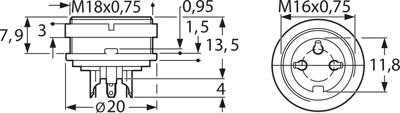

Chassis socket, KGV 40, LUMBERG
Chassis socket IP40, with threaded joint M16 and solder terminals for back side mounting.
Technical specifications
| Version | DIN-Einbaubuchse | |
| Additional parts | bestückt | |
| Shell Material | Metall | |
| Contact connection | Lötkelch | |
| contact surface | vergoldet/versilbert | |
| Cable cross-section | 0,75 mm² | |
| Assembly | Rückseitenmontage | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
