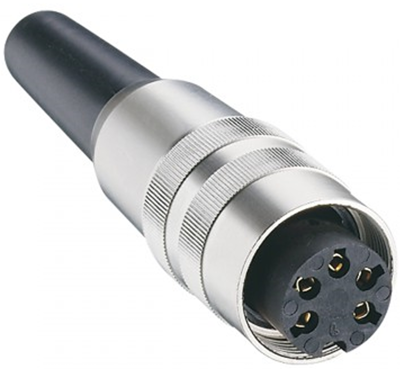

KV 60 | Lumberg
Jack, 6 pole, solder cup, screw locking, straight, KV 60
Unit Price (€ / pc.)
7.8659 € *
Available: 268 pcs.
Next delivery: 40 pcs. on 2025-02-19
Leadtime: 9 Weeks **
Total Price:
7.87 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8659 €
10 pcs.
6.9258 €
50 pcs.
6.4617 €
200 pcs.
6.0690 €
400 pcs.
5.8548 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket, KV 60, LUMBERG
Socket IP40 straight version with threaded joint M16, solder terminals and long bend protection.
Technical specifications
| Version | DIN jack | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
