KV 71-8 | Lumberg

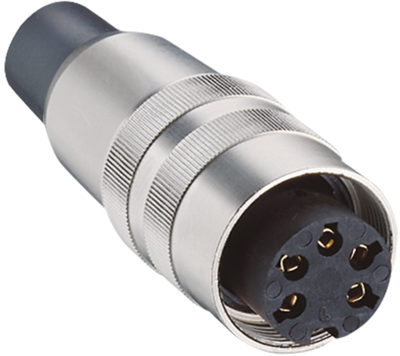

Jack, 7 pole, solder cup, screw locking, straight, KV 71-8
Unit Price (€ / pc.)
5.8548 € *
Available: 0 pcs.
Leadtime: On Request **
Socket, KV 71-8, LUMBERG
Socket IP40 straight version with threaded joint M16, solder terminals and short bend protection.
Technical specifications
| Version | DIN jack | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 7 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
