WSV 60 | Lumberg
Plug, 6 pole, solder cup, screw locking, angled, WSV 60
Unit Price (€ / pc.)
8.0920 € *
Available: 89 pcs.
Leadtime: 17 Weeks **
Total Price:
8.09 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0920 €
10 pcs.
7.1281 €
50 pcs.
6.6283 €
200 pcs.
6.2356 €
400 pcs.
6.0095 €
*incl. VAT plus shipping costs
**Subject to prior sale

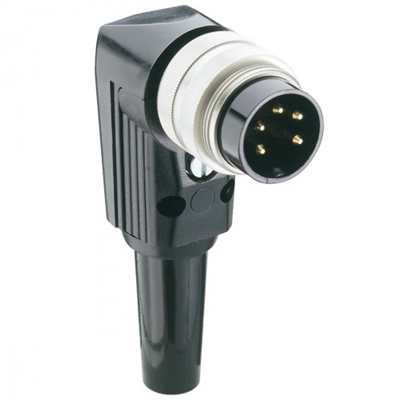

Plug, WSV 60, LUMBERG
Plug IP40, right angle version with threaded joint M16 and solder terminals.
Technical specifications
| Version | DIN plug | |
| Additional parts | equipped | |
| Shell Material | plastic | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
