3114 14 VP15 | Lumberg

Name: Socket housing, 14 pole, pitch 2.5 mm, straight, black, 3114 14 VP15
Brand: Lumberg
SKU: 41P1781
Price: 0.67 EUR
Availability: InStock

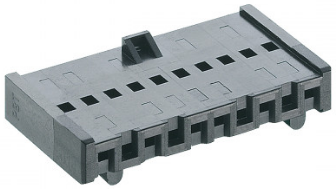

Socket housing, 14 pole, pitch 2.5 mm, straight, black, 3114 14 VP15

Order No.: 41P1781

EAN: 4099889981698

MPN:

3114 14 VP15

Series: 3114

Image may differ

Key Specification:

Ausführung Buchsengehäuse

Kontaktart Buchse

Polzahl 14-polig

Rastermaß 2.5 mm

Anschluss Crimpanschluss

Ordering Information:

Kontakte im Lieferumfang nicht enthalten, bitte separat bestellen

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6664 € *

Available: 1,795 pcs.

Leadtime: 13 Weeks **

Total Price:

0.67 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Socket housing, 3114 14 VP15, Lumberg

Empty Minimodul housing for reception of crimp contacts, for indirect mating

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Produktänderung - DE/EN Produktänderung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	39269097

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory

3111 01 L Lumberg Crimp Contacts — Image may differ

Receptacle, 0.1-0.25 mm², crimp connection, tin-plated, 3111 01 L

Order No.:

56F4875

Manufacturer SKU:

3111 01 L

Available: 5,560 pcs. Leadtime: 7 Weeks **

0.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

3111 03 L Lumberg Crimp Contacts — Image may differ

Receptacle, 0.3-0.6 mm², crimp connection, tin-plated, 3111 03 L

Order No.:

56F4876

Manufacturer SKU:

3111 03 L

Available: 1,990 pcs. Leadtime: 7 Weeks **

0.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

3111 01 G Lumberg Crimp Contacts — Image may differ

Receptacle, 0.1-0.25 mm², crimp connection, tin-plated, 3111 01 G

Order No.:

56F4892

Manufacturer SKU:

3111 01 G

Available: 12,090 pcs. Leadtime: 8 Weeks **

0.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

3111 03 G500 Lumberg Crimp Contacts — Image may differ

Receptacle, 0.3-0.6 mm², crimp connection, tin-plated, 3111 03 G500

Order No.:

56F4894

Manufacturer SKU:

3111 03 G500

Available: 2 pck. Next delivery: 8 pck. on 2025-03-05 Leadtime: 8 Weeks **

62.87 € per pck. *

*incl. VAT plus shipping costs

**Subject to prior sale

3111 01 G500 Lumberg Crimp Contacts — Image may differ

Receptacle, 0.1-0.25 mm², crimp connection, tin-plated, 3111 01 G500

Order No.:

56F4890

Manufacturer SKU:

3111 01 G500

Available: 0 pck. Next delivery: 10 pck. on 2025-03-12 Leadtime: 8 Weeks **

62.87 € per pck. *

*incl. VAT plus shipping costs

**Subject to prior sale

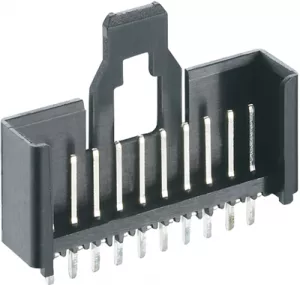

2,5 MSF 14 Lumberg PCB Connection Systems — Image may differ

Pin header, 14 pole, pitch 2.5 mm, straight, black, 2,5 MSF 14

Order No.:

41P1453

Manufacturer SKU:

2,5 MSF 14

Available: 0 pcs. Leadtime: On Request **

0.70 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

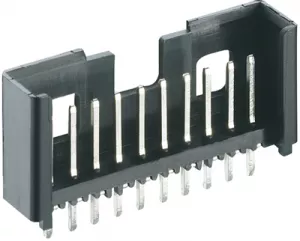

2,5 MSF/O 14 Lumberg PCB Connection Systems — Image may differ
