MICA 12 | Lumberg

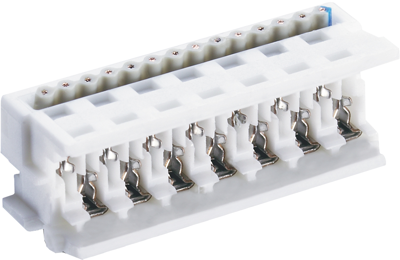

Socket header, 12 pole, pitch 2.54 mm, angled, white, MICA 12

Order No.: 56F5809
EAN: 4099889999938
MPN:
MICA 12
Series: MICA
Lumberg
MICA 12 Lumberg PCB Connection Systems Image 1
MICA 12 Lumberg PCB Connection Systems Image 2
MICA 12 Lumberg PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Available: 1,910 pcs.
Leadtime: 6 Weeks **
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1900 €
50 pcs.
1.1067 €
100 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale

Micro-module connectors, type Lumberg MICA../MICS.

For PCB mounting, space-saving; Grid: 1.27 mm. Rated current: 1.2 A. Rated voltage: 32 VAC. Operating temperatures: –40 to +105 °C. Connectible cables: AWG 28 and AWG 26. Certifications: VDE, UL.

Socket strips with latch, type MICA.

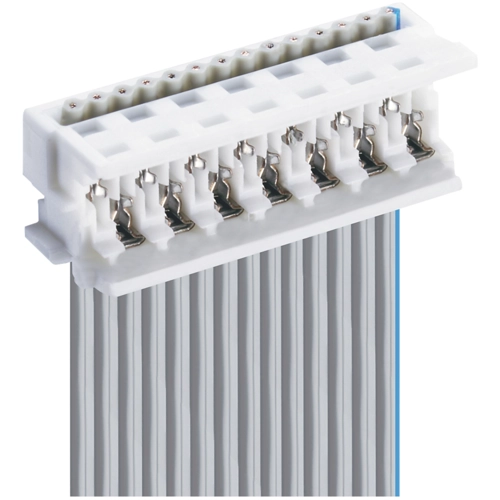

With insulation displacement technology. The socket strips can be used with reliable guide and coding when used in combination with male connectors series MICS; Contact carrier material: PBT to UL 94 V-0. Contact spring: CuSn, tinned. Contact resistance: max. 10 mohm. Insulation resistance: min. 10 Gohm.

Technical attributes (type, number of poles, dimension A): MICA 12, 12–pole, A 17.75 mm

Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsenleiste
Bestückung bestückt
Farbe weiß
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 32 V
Nennstrom 1.2 A
Orientierung abgewinkelt
Polzahl 12-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Originalverpackung Karton mit 500 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
