MICS-D 08 | Lumberg

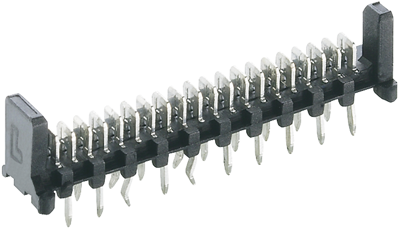

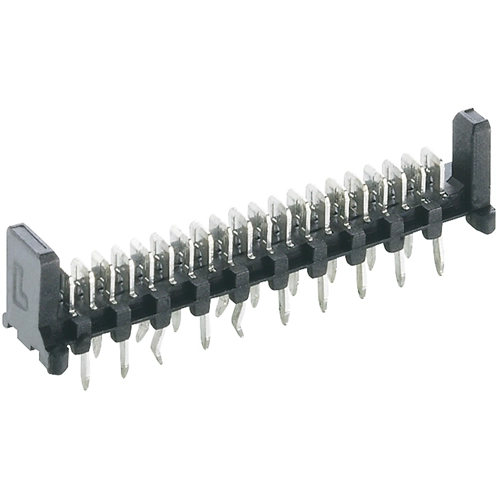

Pin header, 8 pole, pitch 2.54 mm, straight, black, MICS-D 08
Unit Price (€ / pc.)
0.4998 € *
Available: 185 pcs.
Next delivery: 2,000 pcs. on 2025-05-23
Leadtime: 7 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4641 €
50 pcs.
0.4284 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connectors without holding claws, type MICS-D.
With solder terminals, parallel double-row; Contact carrier: with holding claws. PCB hole pitch: 2.54 mm. Contact carrier material: PA, glass fiber-reinforced. Male contact: CuZn, tinned on nickel primer. Test voltage: 750 V/60 s. Insulation resistance: min. 1 Gohm.

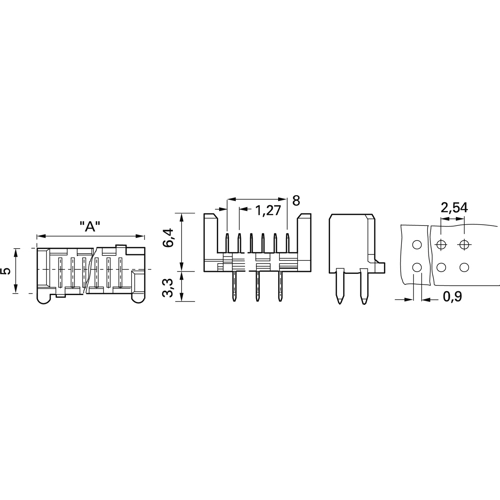

Technical attributes (type, number of poles, dimension A): MICS - D 08, 8 - pole, A 13.94 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 1.2 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Karton mit 1.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
