KRM 04 | Lumberg
PCB terminal, 4 pole, pitch 5 mm, AWG 22-14, 15 A, screw connection, light gray, KRM 04
Unit Price (€ / pc.)
0.9758 € *
Available: 1,625 pcs.
Leadtime: 7 Weeks **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
100 pcs.
0.8449 €
500 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale

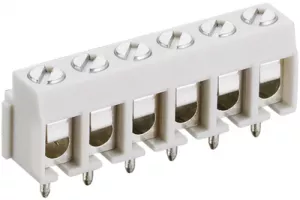

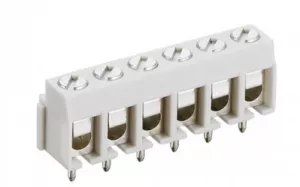

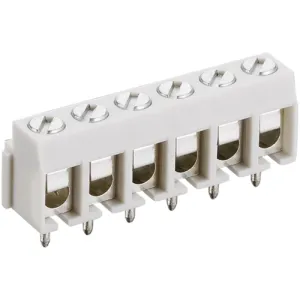

Screw terminal block, type Lumberg KRM 04
Modular terminals suited for in-line multipole installation, solder terminals single-row, vertical. Design with wire protection.
Length: 20 mm
Air gap/creepage distance: to DIN VDE 0110/IEC 60664: 3.0/3.0 mm
Overvoltage category to DIN VDE 0110/IEC 60664: III
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 22-14 | |
| Breite | 7.5 mm | |
| Farbe | hellgrau | |
| Höhe | 14 mm | |
| Kontaktabstand | RM 5 | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 15 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 10 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
