1501 09 | Lumberg

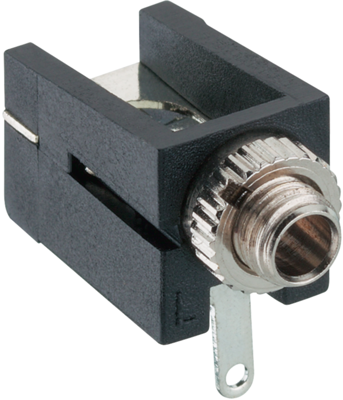

2.5 mm jack panel socket, 2 pole (mono), solder connection, plastic, 1501 09
Unit Price (€ / pc.)
1.6065 € *
Available: 100 pcs.
Next delivery: 500 pcs. on 2025-03-26
Leadtime: 24 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
25 pcs.
1.3685 €
100 pcs.
1.2733 €
250 pcs.
1.2138 €
1000 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature jack chassis sockets, angled, 2-pole, type Lumberg 1501 09.
2.5 mm, with NC contact, for mounting from the rear side; Rated voltage: 16 VDC. Rated current: 20 to 300 mA. Contact resistance: max. 30 mohm. Test voltage: 250 V (60 s). Contact carrier material: PBT. Contact socket and contact spring: CuZn, nickel-plated. Temperature range: –20 bis +60 °C.
Type: 1501 09, angled jack chassis socket
Technical specifications
| Ausführung | Einbaubuchse | |
| Gehäusematerial | Kunststoff | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vernickelt | |
| Montage | Leiterplattenmontage | |
| Pindurchmesser | 2.5 mm | |
| Polzahl | 2-polig |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
