1522 03 | Lumberg

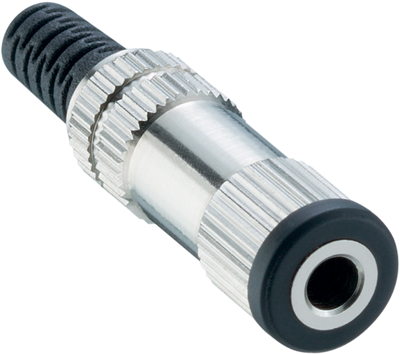

3.5 mm jack socket, 2 pole (mono), solder connection, metal, 1522 03
Unit Price (€ / pc.)
1.8564 € *
Available: 96 pcs.
Leadtime: 9 Weeks **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.7017 €
50 pcs.
1.5470 €
100 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale
Klinkenkupplung 2-polig Typ Lumberg 1522 03.
3,5 mm, im Metallgehäuse, mit Knickschutz und Lötanschlüssen, nach JIS C 6560; Kontakte: Cu-Legierung, vernickelt, Bemessungsspannung: 12 VDC, Bemessungsstrom: 1,0 A, Temperaturbereich: –10 bis +50 °C.
Type: 1522 03, Klinkenkupplung
Technical specifications
| Version | Kupplung | |
| Colour | schwarz/silber | |
| Shell Material | Metall | |
| Contact connection | Lötanschluss | |
| contact surface | vernickelt | |
| Assembly | Kabelmontage | |
| Pin Diameter | 3.5 mm | |
| Pin number | 2-polig |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
