KRESL 05/03 | Lumberg
Screw terminal clamp, 3 pole, 0.2-2.5 mm², white, screw connection, 15 A, KRESL 05/03
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

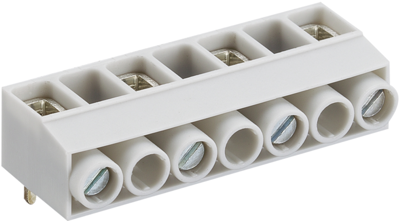

Connecting Block, KRESL 05/03, Lumberg
Screw terminal block, clamp with wire protector, right angle version contact pitch 10.0 mm
FEATURES
- Temperature range -25 °C/+125 °C
- Insulating body PA, V-2 according to UL94
- Tightening torque screw 0,4 Nm
- Screw size M2.6
Technical Data
- Rated current: 15 A
- Design: angled
- Pole number: 3-pole
- Contact spacing: 10 mm
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Schraubanschlussklemme | |
| AWG-Leiterquerschnitt | AWG 22-12 | |
| Farbe | weiß | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennstrom | 15 A | |
| Polzahl | 3-polig |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
