2320 03 T12CB100 | Lutronic

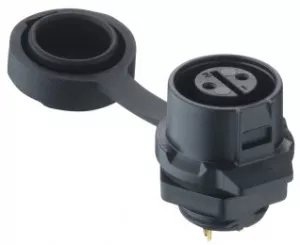

Panel socket, 3 pole, solder cup, quick locking, straight, 2320 03 T12CB100
Unit Price (€ / pc.)
5.4502 € *
Available: 27 pcs.
Next delivery: 15 pcs. on 2025-05-30
Leadtime: 19 Weeks **
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0218 €
50 pcs.
4.5696 €
100 pcs.
4.1174 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quicklock circular connector, 0270 03, Lumberg
Quicklock chassis socket, IP67, size 12, straight version, with plastic housing, solder terminals and protecting cap (IP65)
Technical Data
- Contact connection: Solder cup
- Rated voltage: 125 V
- Number of positions: 3
- Cable cross-section: 0.34-0.75 mm²
- Shell material: PBT
Technical specifications
| Ausführung | Einbaubuchse | |
| Bestückung | bestückt | |
| Gehäusematerial | PBT | |
| Kabeldurchmesser | 3 bis 6 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,34-0,75 mm² | |
| Montage | Chassismontage | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Verriegelung | Schnellverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
