2320 06 T12CB100 | Lutronic

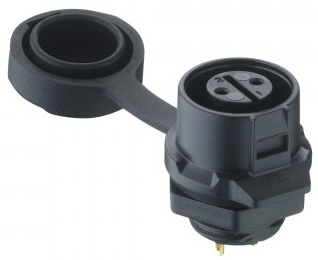

Panel socket, 6 pole, solder cup, quick locking, straight, 2320 06 T12CB100
Unit Price (€ / pc.)
7.7112 € *
Available: 10 pcs.
Leadtime: 18 Weeks **
Total Price:
7.71 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7112 €
10 pcs.
7.0924 €
50 pcs.
6.4617 €
100 pcs.
5.8072 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quicklock circular connector, 0270 06, Lumberg
Quicklock chassis socket, IP67, size 12, straight version, with plastic housing, solder terminals and protecting cap (IP65)
Technical Data
- Contact connection: Solder cup
- Rated voltage: 125 V
- Number of positions: 6
- Cable cross-section: 0.34-0.75 mm²
- Shell material: PBT
Technical specifications
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 3 to 6 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.34-0.75 mm² | |
| Assembly | chassis mounting | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
