2320 07 T12CB100 | Lutronic

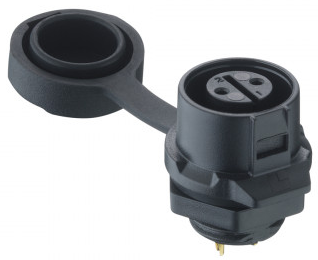

Panel socket, 7 pole, solder cup, quick locking, straight, 2320 07 T12CB100
Unit Price (€ / pc.)
8.0206 € *
Available: 55 pcs.
Leadtime: 18 Weeks **
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
10 pcs.
7.3780 €
50 pcs.
6.7116 €
100 pcs.
6.0452 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quicklock circular connector, 0270 07, Lumberg
Quicklock chassis socket, IP67, size 12, straight version, with plastic housing, solder terminals and protecting cap (IP65)
Technical Data
- Contact connection: Solder cup
- Rated voltage: 125 V
- Number of positions: 7
- Cable cross-section: 0.25-0.34 mm²
- Shell material: PBT
Technical specifications
| Version | Einbaubuchse | |
| Cable cross-section | 0,25-0,34 mm² | |
| Pin number | 7-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Schnellverriegelung | |
| Cable diameter | 3 bis 6 mm | |
| Assembly | Chassismontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PBT |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
