2350 06 T06CB T | Lutronic

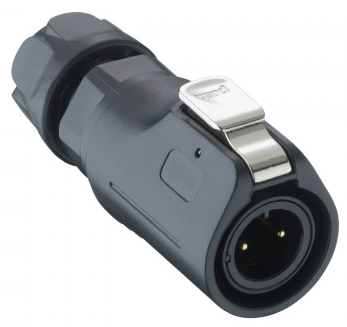

Plug, 6 pole, solder cup, quick locking, straight, 2350 06 T06CB T
Unit Price (€ / pc.)
9.6152 € *
Available: 12 pcs.
Leadtime: 19 Weeks **
Total Price:
9.62 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6152 €
10 pcs.
8.8417 €
50 pcs.
8.0444 €
100 pcs.
7.2471 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quicklock circular connector, 0250 06, Lumberg
Quicklock plug with locking latch, IP67, size 12, straight version, with plastic housing and solder terminals
Technical Data
- Contact connection: Solder cup
- Rated voltage: 125 V
- Number of positions: 6
- Cable cross-section: 0.34-0.75 mm²
- Shell material: PBT
Technical specifications
| Version | Stecker | |
| Cable cross-section | 0,34-0,75 mm² | |
| Pin number | 6-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Schnellverriegelung | |
| Cable diameter | 3 bis 6 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PBT |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
