2420 05 T18CB100 | Lutronic
Panel socket, 5 pole, solder cup, quick locking, straight, 2420 05 T18CB100
Unit Price (€ / pc.)
3.7604 € *
Available: 0 pcs.
Leadtime: On Request **
Quicklock circular connector, IP67

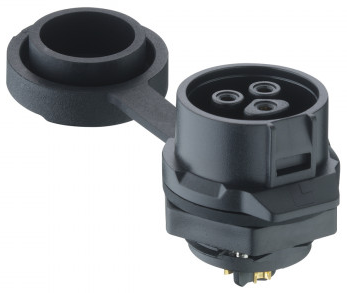

Quicklock chassis socket, IP67, size 16, straight version, with plastic housing, solder terminals and protecting cap (IP65)
Features
- Temperature range: -40 °C/+80 °C
- Rated voltage: 400 V
- Contact resistance: ≤ 5 mΩ
- Approvals: cULus
Technical specifications
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 3 to 8.5 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.34-0.75 mm² | |
| Assembly | chassis mounting | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
