2440 08 T09CB T | Lutronic
Jack, 8 pole, solder connection, quick locking, straight, 2440 08 T09CB T
Unit Price (€ / pc.)
10.5672 € *
Available: 44 pcs.
Leadtime: 18 Weeks **
Total Price:
10.57 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5672 €
10 pcs.
9.7223 €
50 pcs.
8.8417 €
100 pcs.
7.9611 €
*incl. VAT plus shipping costs
**Subject to prior sale

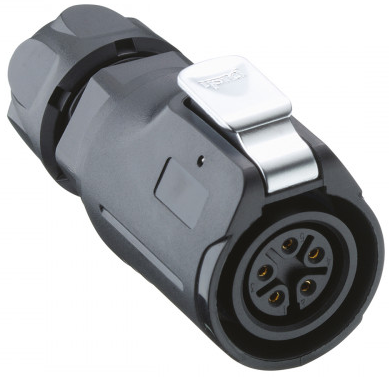

Quicklock socket, 2440 08 T09CB T, Lutronic
Quicklock socket with locking latch, IP67, size 16, straight, with plastic housing and solder terminals.
Technical specifications
| Version | socket | |
| Shell Material | plastic | |
| Cable diameter | 5 to 7 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.34-0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
