2450 03 T09CB T | Lutronic
Plug, 3 pole, solder cup, quick locking, straight, 2450 03 T09CB T
Unit Price (€ / pc.)
8.3895 € *
Available: 0 pcs.
Next delivery: 37 pcs. on 2025-02-28
Leadtime: 18 Weeks **
Total Price:
8.39 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3895 €
10 pcs.
7.3780 €
50 pcs.
6.8901 €
150 pcs.
6.5688 €
500 pcs.
6.2356 €
*incl. VAT plus shipping costs
**Subject to prior sale

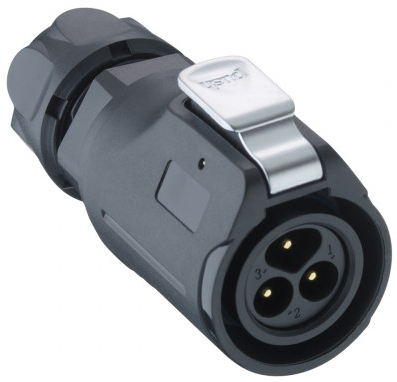

Quicklock circular connector, IP67
Quicklock plug, IP67, size 16, straight version, with plastic housing and solder terminals
Features
- Temperature range: -40 °C/+80 °C
- Rated voltage: 400 V
- Contact resistance: ≤ 5 mΩ
- Cable diameter: 3.0-9.0 mm
- Approvals: cULus
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 3 to 9 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0-1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
