2650 05 T12CB T | Lutronic

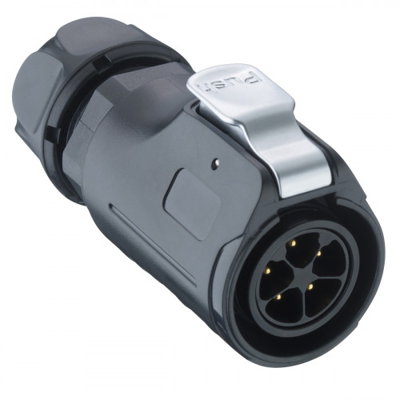

Plug, 5 pole, solder cup, quick locking, straight, 2650 05 T12CB T
Unit Price (€ / pc.)
13.5422 € *
Available: 30 pcs.
Leadtime: On Request **
Total Price:
13.54 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5422 €
10 pcs.
12.4593 €
50 pcs.
11.3407 €
100 pcs.
10.1983 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quicklock circular connector, 0252 05, Lumberg
Quicklock plug with locking latch, IP67, size 20, straight version, with plastic housing and solder terminals
Technical Data
- Contact connection: Solder cup
- Rated voltage: 500 V
- Number of positions: 5
- Cable cross-section: 1.0-2.5 mm²
- Shell material: PBT
Technical specifications
| Ausführung | Stecker | |
| Bestückung | bestückt | |
| Gehäusematerial | PBT | |
| Kabeldurchmesser | 7 bis 13 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Verriegelung | Schnellverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
