0810 03 001 5M | Lutronic

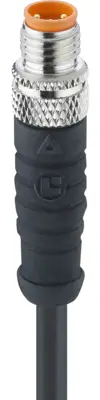

Sensor actuator cable, M8-cable plug, straight to open end, 3 pole, 5 m, PVC, black, 4 A, 0810 03 001 5M
Order No.: 48F115
EAN: 4099891105730
MPN:
0810 03 001 5M
Unit Price (€ / pc.)
8.0325 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Sensor/actuator cable with molded connector, 3-pole, one side with straight M8 male connector, A-coded, other side with open ends, 3 x 0.34 mm² (AWG 22), cable material: PVC, black, 5 m long, according to UL style 2464. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Connection (1) | M8-cable plug, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 50 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
