0810 04 002 5M | Lutronic

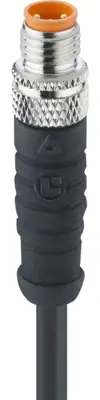

Sensor actuator cable, M8-cable plug, straight to open end, 4 pole, 5 m, PVC, black, 4 A, 0810 04 002 5M
Order No.: 48F1021
EAN: 4099891105105
MPN:
0810 04 002 5M
Unit Price (€ / pc.)
7.4851 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable with molded connector, 4-pole, one side with straight M8 male connector, A-coded, other side with open ends, 4 x 0.34 mm² (AWG 22), cable material: PVC, black, 5 m long, according to UL style 2464. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Anschluss (1) | M8-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 5 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 50 V | |
| Nennstrom | 4 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
