0810 0800 03 001 0,6M | Lutronic

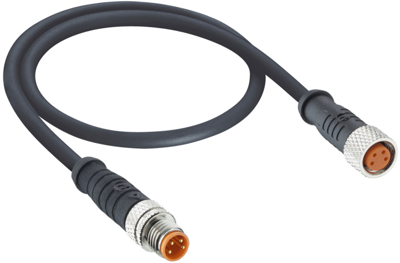

Sensor actuator cable, M8-cable plug, straight to M8-cable socket, straight, 3 pole, 0.6 m, PVC, black, 4 A, 0810 0800 03 001 0,6M
Order No.: 48F107
EAN: 4099891105624
MPN:
0810 0800 03 001 0,6M
Unit Price (€ / pc.)
9.0916 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable with molded connector, 3-pole, A-coded, one side with straight M8 male connector, other side with straight M8 female connector, 3 x 0.34 mm² (AWG 22), cable material: PVC, black, 0.6 m long, according to UL style 20549. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Anschluss (1) | M8-Kabelstecker, gerade | |
| Anschluss (2) | M8-Kabeldose, gerade | |
| Farbe | schwarz | |
| Kabellänge | 0.6 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 50 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
