0810 0800 04 301 0,6M | Lutronic
Sensor actuator cable, M8-cable plug, straight to M8-cable socket, straight, 4 pole, 0.6 m, PUR, black, 4 A, 0810 0800 04 301 0,6M
Order No.: 48F1022
EAN: 4099891105112
MPN:
0810 0800 04 301 0,6M
Unit Price (€ / pc.)
14.5894 € *
Available: 5 pcs.
Leadtime: 15 Weeks **
Total Price:
14.59 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5894 €
10 pcs.
13.4232 €
50 pcs.
12.2094 €
100 pcs.
10.9956 €
*incl. VAT plus shipping costs
**Subject to prior sale

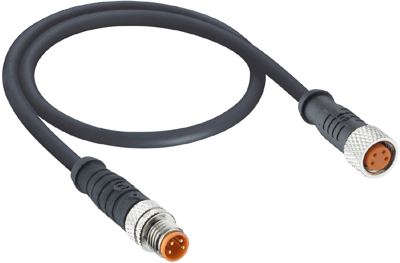

Sensor/actuator cable with molded connectors, 4-pole, A-coded, one side with straight M8 male connector, other side with straight M8 female connector, 4 x 0.34 mm² (AWG 22), cable material: PUR, black, 0.6 m long, according to UL style 20549. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Anschluss (1) | M8-Kabelstecker, gerade | |
| Anschluss (2) | M8-Kabeldose, gerade | |
| Farbe | schwarz | |
| Kabellänge | 0.6 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 50 V | |
| Nennstrom | 4 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
