0830 03 T8CW 0,5M | Lutronic

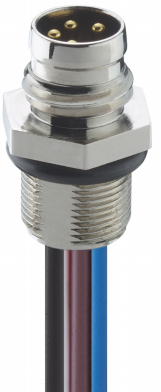

Sensor actuator cable, M8-flange plug, straight to open end, 3 pole, 0.5 m, PVC, metal, 4 A, 0830 03 T8CW 0,5M
Order No.: 48F123
EAN: 4099891105792
MPN:
0830 03 T8CW 0,5M
Unit Price (€ / pc.)
8.5442 € *
Available: 105 pcs.
Leadtime: 15 Weeks **
Total Price:
8.54 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5442 €
10 pcs.
7.5208 €
100 pcs.
6.5926 €
250 pcs.
6.3427 €
1000 pcs.
5.9262 €
*incl. VAT plus shipping costs
**Subject to prior sale
M8 female panel mount connector, 3 poles, A-coded with strands 0.5 m long, 3 x 0.34 mm² (AWG 22), according to UL style 1007, strand material: PVC, brown/blue/black. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Anschluss (1) | M8-Flanschstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | metall | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 50 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
