1205 05 003 2M | Lutronic

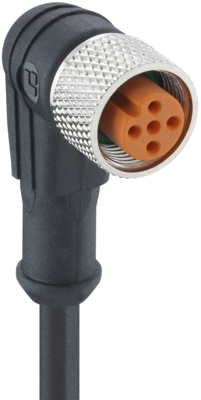

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 2 m, PVC, black, 4 A, 1205 05 003 2M
Order No.: 48F1041
EAN: 4099891105310
MPN:
1205 05 003 2M
Unit Price (€ / pc.)
15.0654 € *
Available: 15 pcs.
Leadtime: 14 Weeks **
Total Price:
15.07 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0654 €
10 pcs.
13.8635 €
50 pcs.
12.6140 €
100 pcs.
11.3526 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator cable with molded connector, one side with angled M12 female connector, A-coded, 5 poles, other side with open ends, 5 x 0.34 mm² (AWG 22), cable material: PVC, black, 2 m long, according to UL style 2464. Rated voltage: 60 V (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 2 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
