1205 08 303 2M | Lutronic
Sensor actuator cable, M12-cable socket, angled to open end, 8 pole, 2 m, PUR, black, 2 A, 1205 08 303 2M
Order No.: 48F1048
EAN: 4099891105389
MPN:
1205 08 303 2M
Unit Price (€ / pc.)
16.9575 € *
Available: 0 pcs.
Leadtime: On Request **

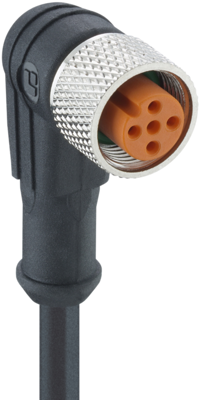

Sensor/actuator cable with molded connector, one side with angled M12 female connector, A-coded, 8 poles, other side with open ends, 8 x 0.25 mm² (AWG 24), cable material: PUR, black, 2 m long, according to UL style 20549. Rated voltage: 30 V (at pollution degree 3), rated current: 2.0 A (at 40 °C), rated impulse voltage: 0.8 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 2 A | |
| Polzahl | 8-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
