1220 04D T16CW 0,5M | Lutronic
Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, PVC, metal, 4 A, 1220 04D T16CW 0,5M
Order No.: 71F8040
EAN: 4099891671488
MPN:
1220 04D T16CW 0,5M
Unit Price (€ / pc.)
8.3776 € *
Available: 4 pcs.
Leadtime: 14 Weeks **
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
5 pcs.
7.9611 €
10 pcs.
7.5803 €
20 pcs.
7.1162 €
50 pcs.
6.7116 €
*incl. VAT plus shipping costs
**Subject to prior sale

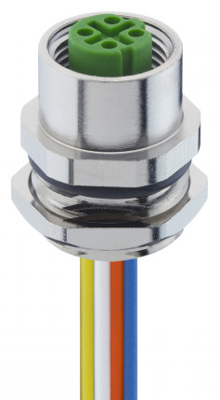

Panel mount socket, 1220 04D T16CW 0,5M, Lutronic
M12 panel mount connector, female, D-coded, IP67, for front mounting, thread M16, with nut and stranded wires.
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Colour | metal | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
