1220 08 T20CW100 0,5M | Lutronic
Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 0.5 m, PVC, black, 2 A, 1220 08 T20CW100 0,5M
Order No.: 71F8002
EAN: 4099891671198
MPN:
1220 08 T20CW100 0,5M
Unit Price (€ / pc.)
6.0333 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

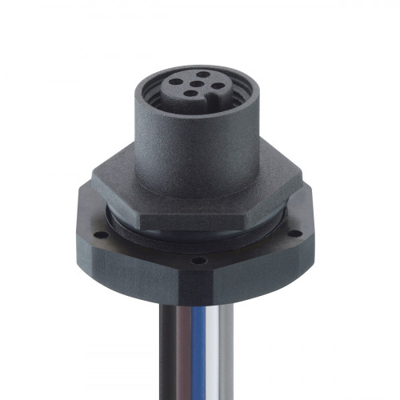

Panel mount connector, 1220 08 T20CW100 0,5M, Lutronic
M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires with plastic housing, black.
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
