1230 08 T16CW 0,5M | Lutronic

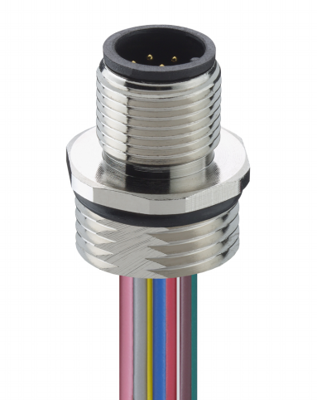

Sensor actuator cable, M12-flange plug, straight to open end, 8 pole, 0.5 m, PVC, metal, 4 A, 1230 08 T16CW 0,5M
Order No.: 48F163
EAN: 4099891106140
MPN:
1230 08 T16CW 0,5M
Unit Price (€ / pc.)
15.4105 € *
Available: 23 pcs.
Leadtime: 14 Weeks **
Total Price:
15.41 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4105 €
10 pcs.
13.5660 €
50 pcs.
12.6378 €
150 pcs.
12.0785 €
500 pcs.
11.4716 €
*incl. VAT plus shipping costs
**Subject to prior sale
M12 male panel mount connector, 8 poles, A-coded with strands 0.5 m long, 8 x 0.25 mm² (AWG 22), according to UL style 1007, strand material: PVC, white/brown/green-yellow/gray/pink/blue/red. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Colour | metal | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 50 V | |
| Rated current | 4 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
