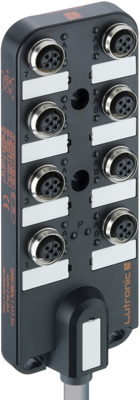

Sensor-actuator distributor, 8 x M12 (5 pole), 5500 08DL1 313 10M

Order No.: 48F180
EAN: 4099889704204
MPN:
5500 08DL1 313 10M
Series: 5500
5500 08DL1 313 10M Lutronic Sensor-Actuator Distribution Boxes
Image may differ
Unit Price (€ / pc.)
189.9002 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
189.90 € *
Price list
Quantity
Price per unit*
1 pcs.
189.9002 €
2 pcs.
180.2969 €
5 pcs.
169.5750 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator distributor, 5500 08DL1 313 10M, Lutronic

Passive distribution box M12, 8-port, double signal, with LEDs, main connection: PUR cable, gray, 10 m lenght. Rated voltage: 10 to 30 VDC (24 VDC), rated current: ≤ 2.0 A (per port), ≤ 8.0 A (total), protection class: IP67, temperature range: -40 °C to 80 °C.

Technical specifications
Bus Eingang M12 (8-polig)
IO Ports 8 x M12 (5-polig)
Leistungsanschluss Kabel
Schutzart (IP) IP67
Logistics
Ursprungsland CN
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
