10249 | M+S Damerius

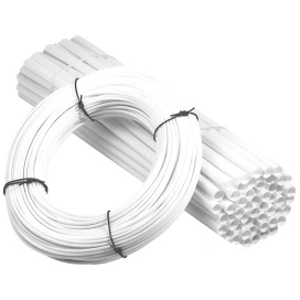

Insulating tube, inside Ø 2.5 mm, natural, glass silk, silicone dispersion, -45 to 230 °C, 10249
Unit Price (€ / mtr.)
1.8088 € *
Available: 1,118 mtr.
Next delivery: 1,000 mtr. on 2025-07-25
Leadtime: 17 Weeks **
Total Price:
18.09 € *
Price list
Quantity
Price per unit*
10 mtr.
1.8088 €
50 mtr.
1.5827 €
250 mtr.
1.3685 €
1000 mtr.
1.2019 €
2500 mtr.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Silicon glass filament insulating tubing, type Adasil.
Fabric-containing insulating tubing compliant with EN 60684; Fabrics: glass filament. Varnish: silicon dispersion. Color: plain. Wall thickness: 0.5 mm. Dielectric strength: 3.0 kV. Contact resistance: 80 Mohm. Temperature class: C. Heat resistance: 230 °C (briefly up to 300 °C).
Technical attributes (type, internal diameter (ID)): Adasil 25, ID 2.5 mm
Technical specifications
| Version | Isolierschlauch | |
| Colour | natur | |
| Inner diameter | 2.5 mm | |
| Material | Glasseide, Silikon-Dispersion | |
| max. operating temperature | 230 °C | |
| min. operating temperature | -45 °C | |
| Wall thickness | 0.5 mm | |
| Thermal class | C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 70199000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
