10585 | M+S Damerius
Insulating tube, inside Ø 3 mm, natural, PUR, -20 to 155 °C, 10585
Unit Price (€ / mtr.)
1.2852 € *
Available: 60 mtr.
Next delivery: 1,000 mtr. on 2025-03-21
Leadtime: 9 Weeks **
Total Price:
12.85 € *
Price list
Quantity
Price per unit*
10 mtr.
1.2852 €
50 mtr.
1.1305 €
250 mtr.
0.9758 €
1000 mtr.
0.8568 €
2500 mtr.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

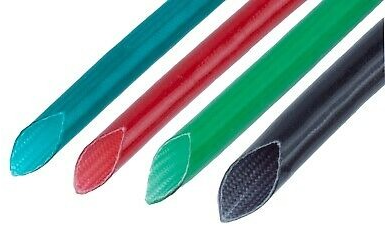

Glass filament insulating tubing, type Adaglas.
Fabric-containing insulating tubing to EN 60684; Fabrics: glass filament. DD Varnish. Color: plain. Wall thickness: 0.5 mm. Breakdown voltage: 3.0 kV. Contact resistance: 80 Mohm. Temperature class: F. Heat resistance: 155 °C.
Technical attributes (type, internal diameter (ID)): Adaglas 30, ID 3.0 mm
Technical specifications
| Ausführung | Isolierschlauch | |
| Farbe | natur | |
| Innendurchmesser | 3 mm | |
| Material | PUR | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -20 °C | |
| Wanddicke | 0.5 mm | |
| Wärmeklasse | F |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 70199000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
