99.585 | Magnetfabrik Bonn
Pot 1, polarity tester
Order No.: 07L1080
EAN: 4099891467258
MPN:
99.585
Unit Price (€ / pc.)
124.4740 € *
Available: 5 pcs.
Leadtime: 1 Week **
Total Price:
124.47 € *
Price list
Quantity
Price per unit*
1 pcs.
124.4740 €
3 pcs.
118.2860 €
6 pcs.
112.3360 €
*incl. VAT plus shipping costs
**Subject to prior sale

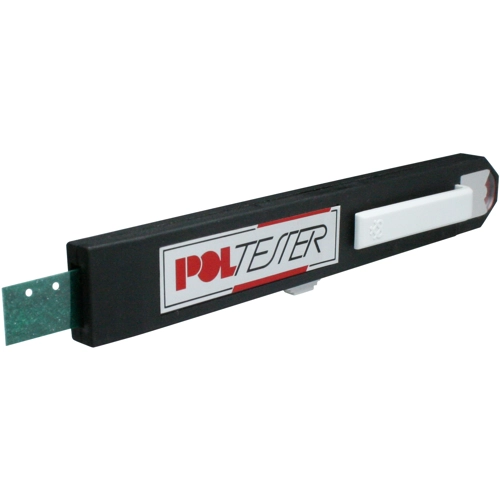

Polarity testers, type Pot 1.

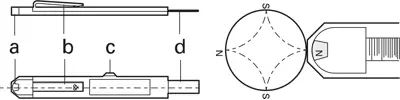

For instantly determining magnetic polarity. With polarity display and pole picture indication; Polarity display: N or S on permanent magnets. Visualization of pole diagrams: the permanent magnet pole diagrams are displayed and the pole leads (P) are measured via slide-out sensor. N and S appear dark while the neutral zones or interferric gaps appear light. In addition to its polarity display (a), the pole tester is equipped with a sensor adjustment slide (c), a flexible sensor with 5.0 mm division (d) and a clip (b). The device is supplied in a case.
Type: Pot 1, polarity tester
Technical specifications
| Version | pole tester |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
