2410.0401 | Marquardt
Foot switch, momentary, 1 pole, 1 Form C (NO/NC), On-(On), 6 A/250 VAC, 2410.0401
Unit Price (€ / pc.)
29.2145 € *
Available: 0 pcs.
Next delivery: 137 pcs. on 2025-03-28
Leadtime: 14 Weeks **
Total Price:
29.21 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2145 €
5 pcs.
27.4533 €
15 pcs.
26.3942 €
50 pcs.
25.2280 €
150 pcs.
24.1927 €
*incl. VAT plus shipping costs
**Subject to prior sale

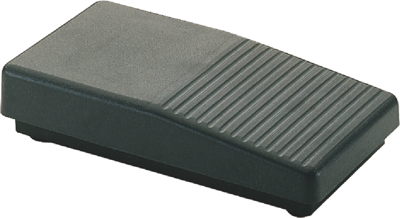

Foot switches series 2410, type Marquardt 2410.
Robust, extended useful life, slip-proof with rubber feet, with suspension opening, single- or double-pole or 2 x single-pole; Switching function: CO or NO, or CO/NO combination. Breaking capacity: 6.0 (2.5) A/250 VAC 5E4. Leakage current resistance: PTI 250. Insulation gap: to EN 61058 for reinforced or double insulation. Contact pitch: < 3.0 mm. Termination type: built-in socket terminals M 3, or connecting cable. Housing and foot plate material: PA, black. Contact material: Ag. Test logo: ENEC, UL.
With M 3 socket terminals.
Technical attributes (type, number of poles, switching function, switch actuating force): 2410.0401, single-pole, CO contact,31 ±5.0 N
Technical specifications
| Anschluss | Klemmanschluss M3 | |
| Gehäusefarbe | schwarz | |
| Polzahl | 1-polig | |
| Schaltfunktion | 1 Wechsler | |
| Schaltleistung | 6 A/250 VAC | |
| Schaltstellung | Ein-(Ein) | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
