2410.0501 | Marquardt
Foot switch, momentary, 2 x 1 pole, 1 Form A (N/O), Off-(On), 6 A/250 VAC, 2410.0501
Unit Price (€ / pc.)
29.4049 € *
Available: 20 pcs.
Leadtime: 14 Weeks **
Total Price:
29.40 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4049 €
5 pcs.
27.6437 €
15 pcs.
26.5846 €
50 pcs.
25.4065 €
150 pcs.
24.3474 €
*incl. VAT plus shipping costs
**Subject to prior sale

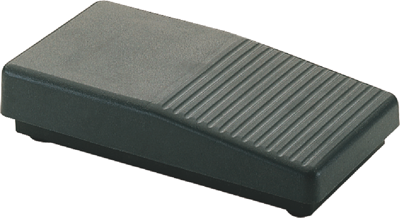

Foot switches series 2410, type Marquardt 2410.
Robust, extended useful life, slip-proof with rubber feet, with suspension opening, single- or double-pole or 2 x single-pole; Switching function: CO or NO, or CO/NO combination. Breaking capacity: 6.0 (2.5) A/250 VAC 5E4. Leakage current resistance: PTI 250. Insulation gap: to EN 61058 for reinforced or double insulation. Contact pitch: < 3.0 mm. Termination type: built-in socket terminals M 3, or connecting cable. Housing and foot plate material: PA, black. Contact material: Ag. Test logo: ENEC, UL
With M 3 socket terminals.
Technical attributes (type, number of poles, switching function, switch actuating force): 2410.0501, 2 x single-pole, combination, 22 ±4,0 N (stage 1), 31 ±5.0 N (stage 2)
Technical specifications
| Connection | clamp connection M3 | |
| Color of body | black | |
| Pin number | 2 x 1 pole | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 6 A/250 VAC | |
| Shift position | Off-(On) | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
