2410.1001 | Marquardt

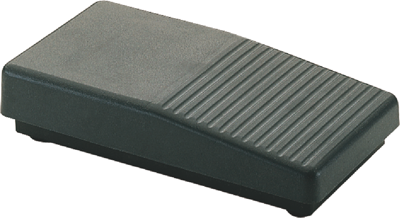

Foot switch, momentary, 2 pole, 1 Form A (N/O), Off-(On), 6 A/250 VAC, 2410.1001
Foot switches series 2410, type Marquardt 2410.
Robust, extended useful life, slip-proof with rubber feet, with suspension opening, single- or double-pole or 2 x single-pole; Switching function: CO or NO, or CO/NO combination. Breaking capacity: 6.0 (2.5) A/250 VAC 5E4. Leakage current resistance: PTI 250. Insulation gap: to EN 61058 for reinforced or double insulation. Contact pitch: < 3.0 mm. Termination type: built-in socket terminals M 3, or connecting cable. Housing and foot plate material: PA, black. Contact material: Ag. Test logo: ENEC, UL.
With connecting cable.
3.0 m connecting cable with Schuko-style plug and 0.25 m connecting cable with Schuko-style jack.
Technical attributes (type, number of poles, switching function, switch actuating force): 2410.1001, double-pole, NO contact, 45 ±7.0 N
| Anschluss | Kabel mit Schuko-Stecker und Schuko-Kupplung | |
| Gehäusefarbe | schwarz | |
| Polzahl | 2-polig | |
| Schaltfunktion | 1 Schließer | |
| Schaltleistung | 6 A/250 VAC | |
| Schaltstellung | Aus-(Ein) | |
| Schutzart (IP) | IP65/IP67 |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
