2420.0101 | Marquardt

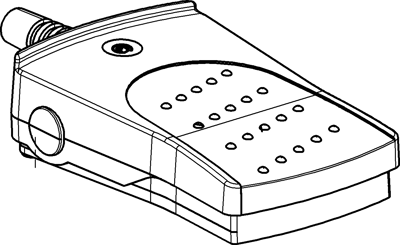

Foot switch, momentary, 1 pole, 1 Form A (N/O), Off-(On), 14 A/250 VAC, 2420.0101
Unit Price (€ / pc.)
48.7067 € *
Available: 23 pcs.
Leadtime: 14 Weeks **
Total Price:
48.71 € *
Price list
Quantity
Price per unit*
1 pcs.
48.7067 €
12 pcs.
42.8638 €
24 pcs.
41.6857 €
48 pcs.
40.5195 €
192 pcs.
38.1752 €
*incl. VAT plus shipping costs
**Subject to prior sale
Foot switches series 2420, type Marquardt 2420.
Compact design, clearly perceptible tactile feedback, stable and slip-proof, dust-and water-proof; Rated voltage: 250 V. Rated current: 16 (8.0) A. Contact resistance: max. 100 mohm. Actuating force: 29 to 51 N/m. Ambient temperatures: –40 to +85 °C. Mechanical useful life: 100000 cycles. Electrical useful life: 10000/25000 cycles at 16 (8.0) A/16 (4.0) A. Degree of protection: IP 65/67, switch travel 1 Step/2 Step: 3.9/7.3 mm. Dimensions: 149 x 98.6 x 47 mm. Foot actuation height: 27.4 mm.
Technical attributes (type, switching function, color): 2420.0101, OFF-ON, black
Technical specifications
| Connection | clamp connection M3 | |
| Color of body | black | |
| Pin number | 1 pole | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 14 A/250 VAC | |
| Shift position | Off-(On) | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365080 |
| Original Packaging | Carton with 12 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
