2420.0501 | Marquardt

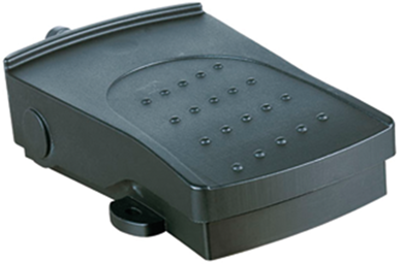

Foot switch, momentary, 2 x 1 pole, 1 Form A (N/O), Off-(On)-(On), 14 A/250 VAC, 2420.0501
Unit Price (€ / pc.)
55.8586 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
55.86 € *
Price list
Quantity
Price per unit*
1 pcs.
55.8586 €
12 pcs.
49.1589 €
24 pcs.
47.8142 €
48 pcs.
46.4933 €
192 pcs.
43.8039 €
*incl. VAT plus shipping costs
**Subject to prior sale
Foot switches series 2420, type Marquardt 2420.
Compact design, clearly perceptible tactile feedback, stable and slip-proof, dust-and water-proof; Rated voltage: 250 V. Rated current: 16 (8.0) A. Contact resistance: max. 100 mohm. Actuating force: 29 to 51 N/m. Ambient temperatures: –40 to +85 °C. Mechanical useful life: 100000 cycles. Electrical useful life: 10000/25000 cycles at 16 (8.0) A/16 (4.0) A. Degree of protection: IP 65/67, switch travel 1 Step/2 Step: 3.9/7.3 mm. Dimensions: 149 x 98.6 x 47 mm. Foot actuation height: 27.4 mm.
Technical attributes (type, switching function, color): 2420.0501, OFF-ON-ON (2-step), black
Technical specifications
| Anschluss | Klemmanschluss M3 | |
| Gehäusefarbe | schwarz | |
| Polzahl | 2 x 1-polig | |
| Schaltfunktion | 1 Schließer | |
| Schaltleistung | 14 A/250 VAC | |
| Schaltstellung | Aus-(Ein)-(Ein) | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| Originalverpackung | Karton mit 12 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
