2420.5201 | Marquardt
Foot switch, momentary, 2 pole, 1 Form A (N/O), Off-(On), 14 A/250 VAC, 2420.5201
Unit Price (€ / pc.)
94.5455 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
94.55 € *
Price list
Quantity
Price per unit*
12 pcs.
94.5455 €
102 pcs.
86.5011 €
*incl. VAT plus shipping costs
**Subject to prior sale

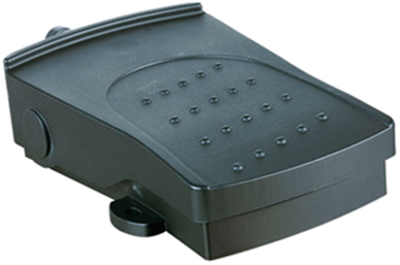

Foot switches series 2420, type Marquardt 2420.
Compact design, clearly perceptible tactile feedback, stable and slip-proof, dust-and water-proof; Rated voltage: 250 V. Rated current: 16 (8.0) A. Contact resistance: max. 100 mohm. Actuating force: 29 to 51 N/m. Ambient temperatures: –40 to +85 °C. Mechanical useful life: 100000 cycles. Electrical useful life: 10000/25000 cycles at 16 (8.0) A/16 (4.0) A. Degree of protection: IP 65/67, switch travel 1 Step/2 Step: 3.9/7.3 mm. Dimensions: 149 x 98.6 x 47 mm. Foot actuation height: 27.4 mm.
With 3.0 m cable and Schuko-style plug.
Technical attributes (type, switching function, color): 2420.5201, OFF-ON, black, Schuko-style plug with 3.0 m cable
Technical specifications
| Connection | cable with german schuko-style plug | |
| Color of body | black | |
| Pin number | 2 pole | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 14 A/250 VAC | |
| Shift position | Off-(On) | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
