1115.2101 | Marquardt

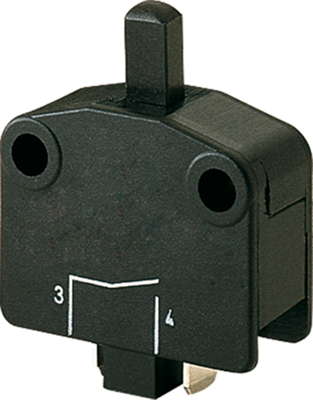

Snap-action switches, single-pole, double action lift-off contact system, series 1115, type Marquardt 1115.

NC, NO or CO contact; Breaking power: 16 (4,0) A/400 VAC 1E4 (NC and NO) or 16 (2,0) A/380 VAC 1E4 (CO). Contact resistance (new condition): max. 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Housing material: PA, ultrasonically welded. Actuator: PA, glass fiber-reinforced. Color: black. Contacts: Ag. Terminals: silver-plated, suitable for safety class II devices if the required device mounting conditions have been met. Connection: 6.3 x 0.8 mm tab terminals. Inflammability: UL 94 V-0. Contact gap: > 3.0 mm. Switching force: 6.0 (±0.5) N (NC and NO), 6.5 (±1.0) N (CO). Test logo: ENEC.

Technical attributes (type, switching function): 1115.2101, NC contact
