1661.5201 | Marquardt

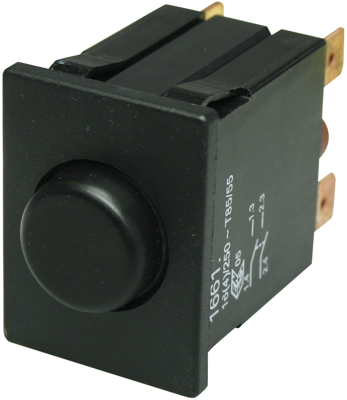

Pushbutton switch, 2 pole, black, unlit , 16 (4) A/250 VAC, mounting Ø 15.5 mm, IP54, 1661.5201
Pushbuttons and switches, illuminated or not illuminated, series 1660, type Marquardt 1661.
Double-pole, not illuminated, with double make before break spring contacts switching system, speed of contact opening or closing independent of the actuating speed; Breaking capacity: 16 (4.0) A/250 VAC 1E4 (NO contact and OFF switch), 12 (4.0) A/250 VAC 1E4 (CO contact). Contact resistance (new condition): max. 100 mohm (1,0 A/12 VDC). Insulation resistance (new condition): min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40 oder IP 54, suitable for devices of safety class II. Insulation gap: to EN 61058 for reinforced or double insulation. Termination type: 6.3 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Contact material: Ag. Terminals: Cu. Housing: PA, black. Inflammability: UL 94 V-2, Montage: snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (termination side up to +85 °C). Test logo: ENEC.
OFF switch with 6.3 x 0.8 mm tab terminals.
Technical attributes (type, number of poles, illumination, actuator color, degree of protection): 1661.5201, double-pole, not illuminated, black, IP 54
| Anschluss | Steckanschluss | |
| Bauform | rechteckig | |
| Bedruckt | No | |
| beleuchtet | No | |
| Einbaudurchmesser | 15.5 mm | |
| Farbe Betätiger | schwarz | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 2-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 16 (4) A/250 VAC | |
| Schutzart (Betätigungsseite) | IP54 | |
| Vandalengeschützt | No |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| Originalverpackung | Karton mit 100 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
