1550.1902 | Marquardt

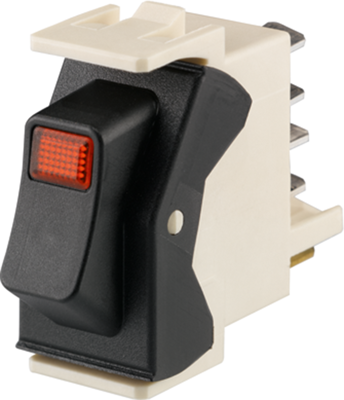

Rocker switch, red, 1 pole, On-Off, off switch, 7 A/250 VAC, IP40, illuminated, 1550.1902
Rocker switches series ECO 1550, type Marquardt 1550.

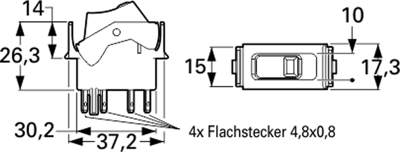

Single-pole, illuminated (red glow lamp) or not illuminated. Manual, Auto-Off, or Remote-Off switching function; Breaking capacity: 10 (4.0) A/250 VAC. Contact resistance: max. 500 mohm. Insulation resistance: min. 100 Mohm. Material: PA 66 (housing and rocker). Contacts: AgNi 10. Connections: 4.8 x 0.8 mm tabs, silver-plated copper. Mounting: from the rear through snap-in window or panel frame. Ambient temperatures: –20 to +85 °C. Housing color: white. Degree of protection: IP 40, suitable for equipment of safety class II. Inflammability: UL 94 V-0. Test logos: ENEC, UL. Dimensions: 37.2 x 17.3 x 35.8 mm. Cut-out: 10.7 x 25.3 mm.
Break action switches, standard, ON-OFF.
Rocker color: black.
Technical attributes (type, illuminated / not illuminated): 1550.1902, illuminated (red)
| Connection | plug-in connection | |
| Design | rectangular | |
| illuminated | Yes | |
| Actuator colour | red | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 25.8 x 10.6 mm | |
| Pin number | 1 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 7 A/250 VAC | |
| Shift position | On-Off | |
| Protection class | IP40 |
| Country of origin | CN |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
