1552.3112 | Marquardt

Rocker switch, black, 2 pole, On-Off, off switch, 10 (4) A/250 VAC, 6 (4) A/250 VAC, IP40, unlit, printed, 1552.3112

Order No.: 11G2302
EAN: 4099889184600
MPN:
1552.3112
Series: 1550

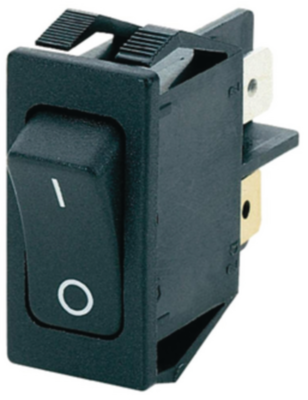

1552.3112 Marquardt Rocker Switches Image 1

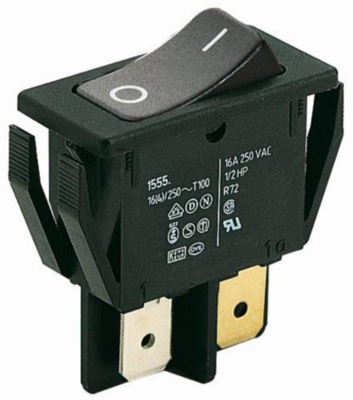

1552.3112 Marquardt Rocker Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.8794 € *
Available: 50 pcs.
Leadtime: 14 Weeks **
Total Price:
3.88 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8794 €
10 pcs.
3.4153 €
100 pcs.
2.9988 €
250 pcs.
2.8798 €
1000 pcs.
2.6894 €
*incl. VAT plus shipping costs
**Subject to prior sale

Rocker switch, 1552.3112, Marquardt

Marquardt 1550 series single and double pole rocker switches. The 1550 rocker switches are suitable for use in Class II appliances and are available with non-illuminated or window illuminated (red, amber or green) 230 V ac neon actuators. The 1550 rocker switches have silver contacts with SPST or DPST (on-off) switching formats, a contact resistance <100 mΩ and an insulation resistance of>100 mΩ. Electrical connection is made via the 6.3 mm Faston/Quick Connect style terminals.

Technical specifications
Anschluss Steckanschluss
Bauform rechteckig
Bedruckt Yes
beleuchtet No
Farbe Betätiger schwarz
Kontaktoberfläche versilbert
min. Geräteausschnitt 27,2 x 12,2 mm
Polzahl 2-polig
Schaltfunktion Ausschalter
Schaltleistung 10 (4) A/250 VAC, 6 (4) A/250 VAC
Schaltstellung Ein-Aus
Schutzart (Betätigungsseite) IP40
Wandstärke 0,8 bis 5,0 mm
Logistics
Ursprungsland TN
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
