1800.0108 | Marquardt

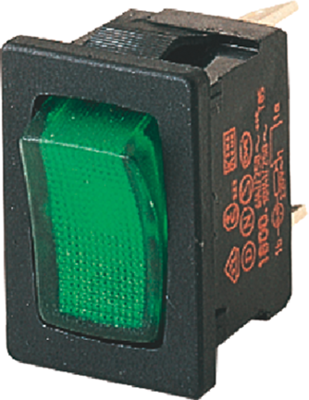

Rocker switch, green, 1 pole, On-Off, off switch, 10 (4) A/250 VAC, 6 (4) A/250 VAC, IP40, illuminated, unprinted, 1800.0108
Vom Hersteller nicht mehr lieferbar
Rocker switches, break action, single-pole, illuminated, series 1800, type Marquardt 1800.
Single-pole. Black. With illuminated rocker; Breaking capacity: 10 (4.0) A/250 VAC. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (factory-state): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Housing material: PA. Rocker: PC. Contacts: silver. Connections: silver-plated. Snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: –20 to +55 °C (connection side up to + 100 °C). Certifications: ENEC, UL, CSA.
Technical attributes (type, connection type, rocker color): 1800.0108, solder terminals, green
| Anschluss | Lötanschluss | |
| Bauform | rechteckig | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Farbe Betätiger | grün | |
| Kontaktoberfläche | versilbert | |
| min. Geräteausschnitt | 19,2 x 12,9 mm | |
| Polzahl | 1-polig | |
| Schaltfunktion | Ausschalter | |
| Schaltleistung | 10 (4) A/250 VAC, 6 (4) A/250 VAC | |
| Schaltstellung | Ein-Aus | |
| Schutzart (Betätigungsseite) | IP40 | |
| Wandstärke | 0,75 bis 3 mm |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
