1801.1302 | Marquardt

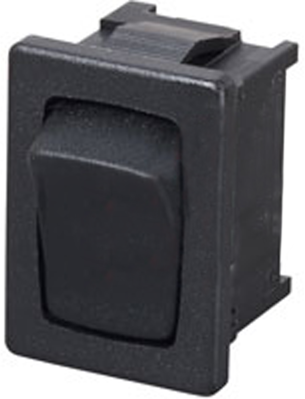

Rocker switch, black, 1 pole, On-(Off), pushbutton Form B (N/C), 4 (2) A/250 VAC, IP40, unlit, printed, 1801.1302
Rocker switches, single-pole or two-pole, series 1800, type Marquardt 1801../1802../1803.
Single-pole or double-pole. Black; Breaking capacity: 4.0 (2.0) A/250 VAC (10 (4.0) A/250 VAC on version with solder terminals). Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Housing and rocker material: PA. Contacts: silver. Connections: silver-plated. Snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: –20 to +55 °C (connection side up to +100 °C). Certifications: ENEC, UL, CSA.

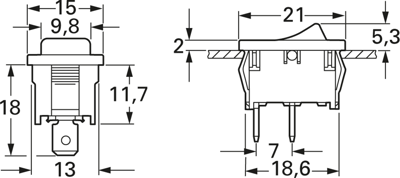

Single-pole with 4.8 x 0.8 mm tab terminals, type 1801../1803.
Technical attributes (type, switching action): 1801.1302, NC contact
| Anschluss | Steckanschluss | |
| Bauform | rechteckig | |
| Bedruckt | Yes | |
| beleuchtet | No | |
| Farbe Betätiger | schwarz | |
| Kontaktoberfläche | versilbert | |
| min. Geräteausschnitt | 19,2 x 12,9 mm | |
| Polzahl | 1-polig | |
| Schaltfunktion | Taster (Öffner) | |
| Schaltleistung | 4 (2) A/250 VAC | |
| Schaltstellung | Ein-(Aus) | |
| Schutzart (Betätigungsseite) | IP40 | |
| Wandstärke | 0,75 bis 3 mm |
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
