1808.6102 | Marquardt

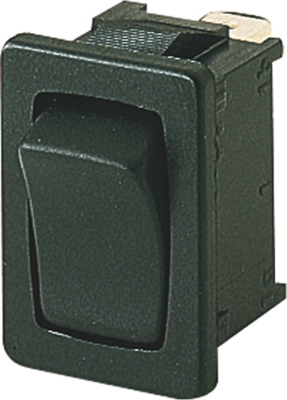

Rocker switch, black, 1 pole, On-Off-On, changeover switch, 6 (2) A/250 VAC, IP40, unlit, unprinted, 1808.6102
Rocker switches, CO action, single-pole or double-pole, center OFF, series 1800, type Marquardt 1808../1809.
Single-pole or double-pole. Black. Rocker with white or no legend; Breaking capacity: 6.0 (2.0) A/250 VAC 1E4. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Housing and rocker material: PA. Contacts: silver. Connections: silver-plated (with tinned PCB terminals). Snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: –20 to +55 °C (connection side up to +100 °C). Certifications: ENEC, UL, CSA.
Single-pole (center OFF).
Technical attributes (type, connection type, rocker type): 1808.6102, solder terminals, no legend
| Anschluss | Lötanschluss | |
| Bauform | rechteckig | |
| Bedruckt | No | |
| beleuchtet | No | |
| Farbe Betätiger | schwarz | |
| Kontaktoberfläche | versilbert | |
| min. Geräteausschnitt | 19,2 x 12,9 mm | |
| Polzahl | 1-polig | |
| Schaltfunktion | Umschalter | |
| Schaltleistung | 6 (2) A/250 VAC | |
| Schaltstellung | Ein-Aus-Ein | |
| Schutzart (Betätigungsseite) | IP40 | |
| Wandstärke | 0,75 bis 3 mm |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
