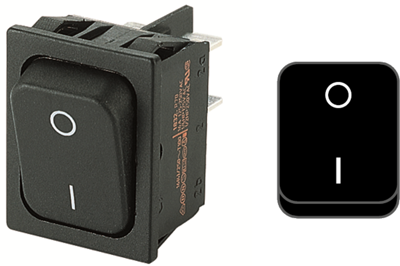

1832.3313 | Marquardt
Rocker switch, black, 2 pole, On-Off, off switch, 20 (4) A/250 VAC, 10 (8) A/250 VAC, IP40, unlit, printed, 1832.3313
Unit Price (€ / pc.)
3.9508 € *
Available: 162 pcs.
Leadtime: 14 Weeks **
Total Price:
3.95 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9508 €
10 pcs.
3.4867 €
100 pcs.
3.0583 €
250 pcs.
2.9274 €
1000 pcs.
2.7489 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rocket switch, 1832.3313, Marquardt
Unlighted, with printed rocker, 2-pole, switching capacity: 10 (4.0) A/250 VAC 1E4, contact resistance (new condition): max. 100 m Ohm (1.0 A/12 VDC), insulation resistance (new condition): min. 100 M Ohm (500 VDC), tracking resistance: PTI 250, protection class: IP 40, suitable for devices of protection class II, insulation distance: according to EN 61058 for reinforced or double insulation, connection type: plug connection 6.3 x 0.8 mm. Material housing: PA, material rocker: PC, PA, material contacts: Ag, connection surface: silver plated, flammability: UL 94 V-2. mounting: by snap-in fixing for wall thicknesses from 0.75 to 3.0 mm, ambient temperature: -20 to +55 °C (connection side up to +105 °C). Mark of conformity: ENEC, UL, CSA.
Technical specifications
| Connection | plug-in connection | |
| Design | rectangular | |
| Printed | Yes | |
| illuminated | No | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 30 x 22 mm | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 20 (4) A/250 VAC, 10 (8) A/250 VAC | |
| Shift position | On-Off | |
| Protection class | IP40 | |
| Wall thickness | 0.75 to 3 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365007 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
