1839.1507 | Marquardt

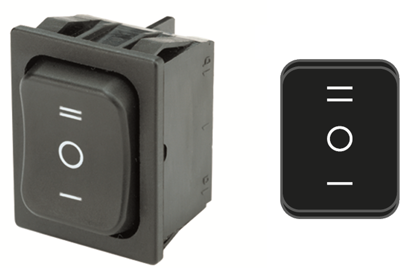

Rocker switch, black, 2 pole, On-Off-On, changeover switch, 6 (4) A/250 VAC, IP40, unlit, printed, 1839.1507
Rocker switches, make and momentary action, series 1830, type Marquardt 1839.
Not illuminated, rocker with legend, double-pole; Breaking capacity: 6,0 (4,0) A/250 VAC 1E4. Contact resistance (new condition): max. 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Insulation gap: to EN 61058 for reinforced or double insulation. Connection type: 4.8 x 0.8 mm tab terminals. Housing material: PA. Rocker material: PC, PA. Contact material: Ag. Contact finish: silver-plated. Inflammability: UL 94 V-2. Mounting: snap mount for wall thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (termination side up to +105 °C). Test logo: ENEC, UL, CSA.
CO action switches with center OFF, not illuminated, 4.8 x 0.8 mm tab terminals.
Technical attributes (type, number of poles, housing color, rocker color, rocker illumination): 1839.1507, double-pole, black, black, white with legend
| Anschluss | Steckanschluss | |
| Bauform | rechteckig | |
| Bedruckt | Yes | |
| beleuchtet | No | |
| Farbe Betätiger | schwarz | |
| Kontaktoberfläche | versilbert | |
| min. Geräteausschnitt | 30 x 22 mm | |
| Polzahl | 2-polig | |
| Schaltfunktion | Umschalter | |
| Schaltleistung | 6 (4) A/250 VAC | |
| Schaltstellung | Ein-Aus-Ein | |
| Schutzart (Betätigungsseite) | IP40 | |
| Wandstärke | 0,75 bis 3 mm |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
